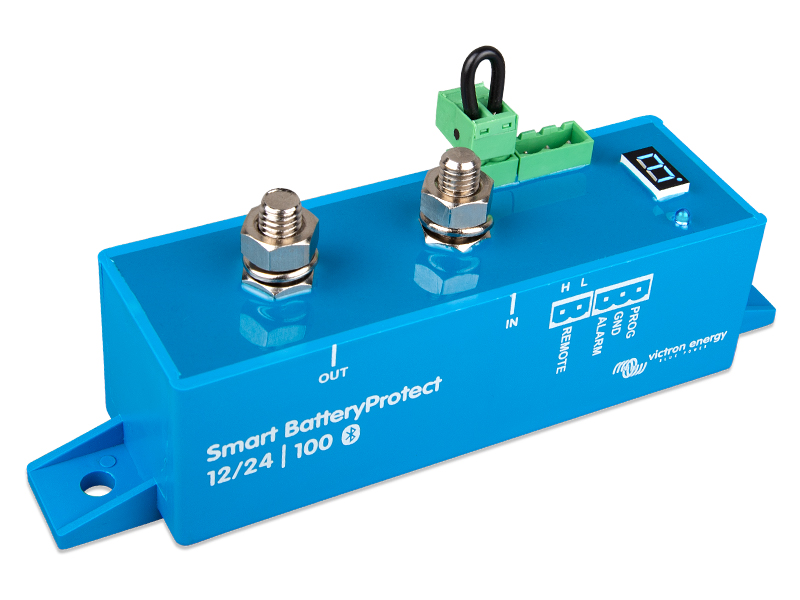

SMART BATTERYPROTECT 12/24V-100A 1702-87464

Produkta apraksts

BatteryProtect disconnects the battery from non essential loads before it is completely discharged (and might get damaged) or before it has insufficient power left to crank the engine. 12/24V auto ranging: automatically detects system voltage. Easy programming: any required engage/disengage levels can be set by using Bluetooth. Alternatively, one of nine predefined engage/disengage levels can be set with the programming pin. Bluetooth can be disabled, when not needed. VictronConnect can display the most important data of the Smart BatteryProtect on the Device List page without the need to pair with the product. This includes visual notifications of warnings, alarms, and errors that enable diagnostics at a glance. A special setting for Li-ion batteries: can be controlled by the VE.Bus BMS. BatteryProtect can also be used as a charge interrupter in between a battery charger and a Li-ion battery. Ultra low current consumption is important in case of Li-ion batteries, especially after low voltage shutdown. Over voltage protection: to prevent damage to sensitive loads due to over voltage, the load is disconnected whenever the DC voltage exceeds 16.3V respectively 32.6V. Ignition proof: no relays but MOSFET switches, and therefore no sparks. Delayed alarm: output is activated if the battery voltage drops below the preset disconnect level during more than 12 seconds: starting the engine will not activate it. The alarm output is a short circuit proof open collector output to the negative (minus) rail, max. current 50 mA. The alarm output is typically used to activate a buzzer, LED or relay. Delayed load disconnect and delayed reconnect: load will be disconnected 90 s after the alarm has been activated. If the battery voltage increases again to the connect threshold within this time period (after the engine has been started for example), the load will not be disconnected. The load will be reconnected 30 seconds after the battery voltage has increased to more than the preset reconnect voltage. Operating voltage 6-35V, load current 100A – 600A (peak 30 s), Default tresholds: disengage 10.5/21V – engage 12/24V. Operating temp. -40°C … +40°C (full load) up to +60°C (at 50% load), connection M6, IP67 (electronics) – IP00 (connections)

1702-87464
