Tehniskie parametri
sku_oem | 1702-87209 |
Izmēri | 745.00 x 214.00 x 110.00mm |
Ražotājs | Victron Energy |
Volti | 12 V |
EAN kods | 8719076021599 |
IP izturība | IP21 |
Apstiprināts | 2004/104/EC, EN 60335-1/-2-29, EN 62109, EN 55014-1/-2, EN 61000-3-3 |
Reference value | 0.0 |

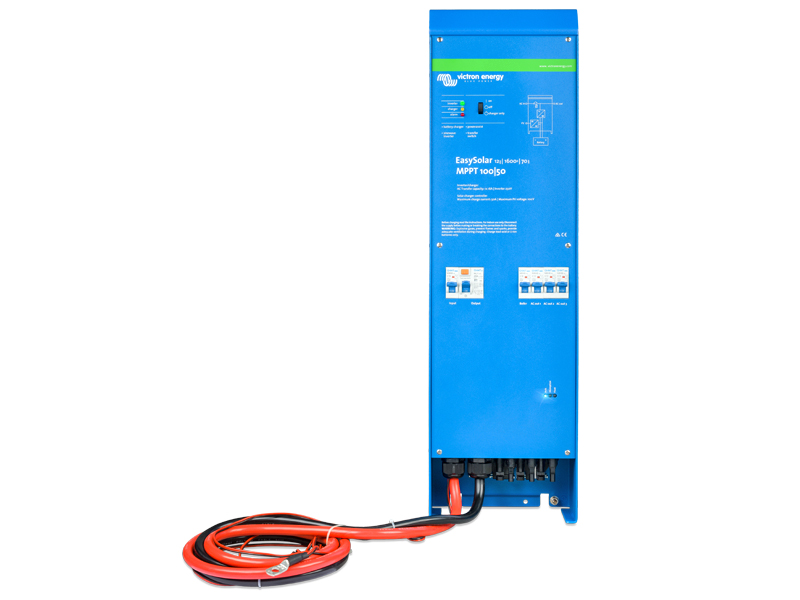

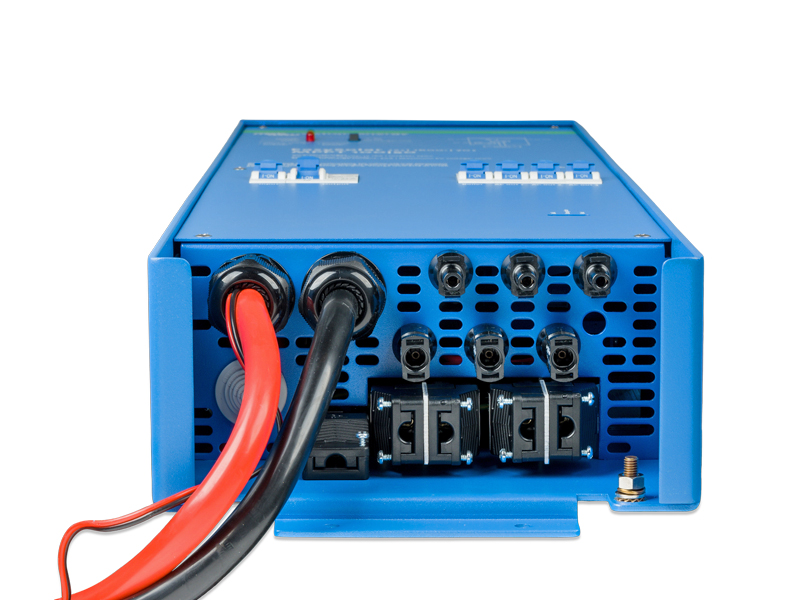

All-in-one solar power solution 1600VA 1702-87209
Produkta apraksts
all-in-one solar power solution integrated: inverter/charger MultiPlus Compact and charge controller Blue Solar MPPT 100/50: minimum of wiring – simplified installation – saving time and money. The batteries can be charged with solar power and/or with AC power from the utility grid or a genset. AC DISTRIBUTION: RCD (30 mA/16 A) and four AC outputs protected by circuit breakers (2x10A + 2x16A). One 16A output is controlled by the AC input and switches on only when AC is available. POWER ASSIST protects the utility or generator supply from being overloaded by adding extra inverter power when needed. SOLAR CHARGE CONTROLLER: Up to 3 strings of PV panels can be connected to 3 sets of MC4 (PV-ST01) connectors, INVERTER: input 9.5-17V, output 230VAC 50HZ, continous output 1600VA (@25°C), efficiency max 92%, CHARGER: input 187-265VAC, charge voltage: 13.2-14.4V, charge current house/starter battery 70/4A, multi-stage adaptive charge algorithm, with temperature sensor and programmable relay, PROTECTIONS: output short circuit, overload, battery voltage too high or too low, temperature too high, 230VAC on inverter output, input voltage ripple too high. Operating temperature -20°C … +50°C, RH max 95% (non-cond.), Battery cables 1.5 m, PV-connection: 3 x MC4 (PV-ST01) set, AC-connection: G-ST18i
1702-87209
Tehniskie parametri
sku_oem | 1702-87209 |
Izmēri | 745.00 x 214.00 x 110.00mm |
Ražotājs | Victron Energy |
Volti | 12 V |
EAN kods | 8719076021599 |
IP izturība | IP21 |
Apstiprināts | 2004/104/EC, EN 60335-1/-2-29, EN 62109, EN 55014-1/-2, EN 61000-3-3 |
Reference value | 0.0 |
