Battery Isolator 1702-87437

Produkta apraksts

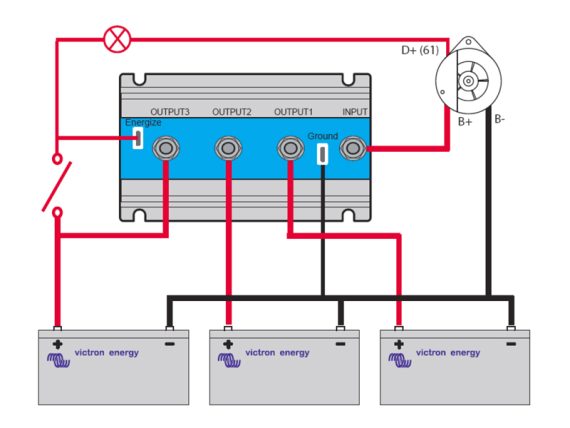

FET-technology, similarly to diode isolators Argofet allows simultaneous charging of three batteries from one alternator or a single output charger w/o connecting the batteries together. Discharging the accessory battery for example does not discharge the starter battery. In contrast with diode isolators FET Isolators have virtually no voltage loss: voltage drop is < 0.02 V at low current and averages 0.1 V at higher currents. No need to increase the output voltage of the alternator, but care should be taken to keep cable lengths short and of sufficient cross section. Alternator energize input: some alternators need DC voltage on the B+ output to start charging. DC is present when the alternator is directly connected to a battery. Argodiode or Argofet splitter prevents any return voltage/current from the batteries to the B+, and the alternator will not start. The new Argofet Isolators have a special current limited energize -input that will power the B+ when the engine run/stop switch is closed.

1702-87437
