Battery monitor w. Bluetooth 1702-87467

Produkta apraksts

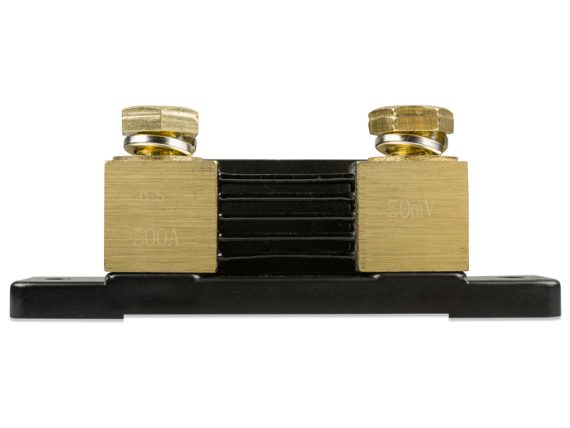

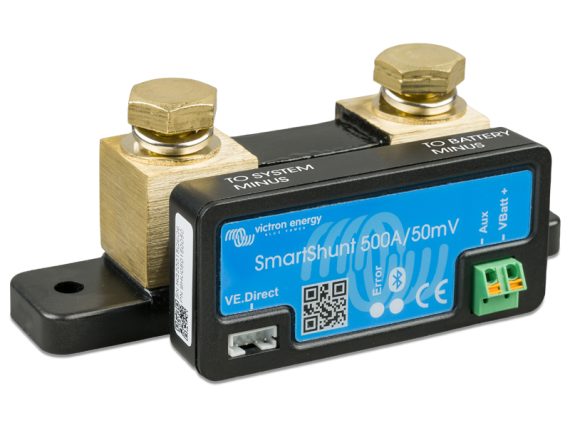

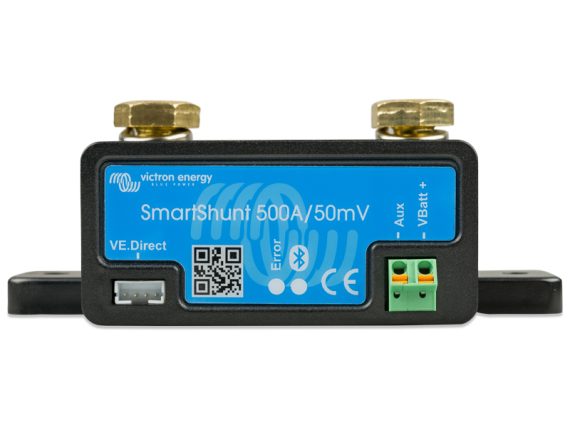

All in one battery monitor without a display. Phone or tablet acts as the display. The SmartShunt connects via Bluetooth to the mobile device with VictronConnect App. Possible to conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more. SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable. The SmartShunt is a good alternative for a BMV battery monitor, especially when battery monitoring is needed but less wiring and clutter is wanted. The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used to monitor a second battery, for midpoint monitoring, or to connect a temperature sensor. Operating voltage 6.5-70VDC, current <1mA, battery capacity 1-9999 Ah, operating temperature -20°C… +50°C, connection bolts M10. Data stored (for 46 days): battery voltage, current, state of charge % and Aux input: Battery temperature, midpoint deviation or starter battery voltage.

1702-87467
