Relejs 1790-7601 1790-7601

Produkta apraksts

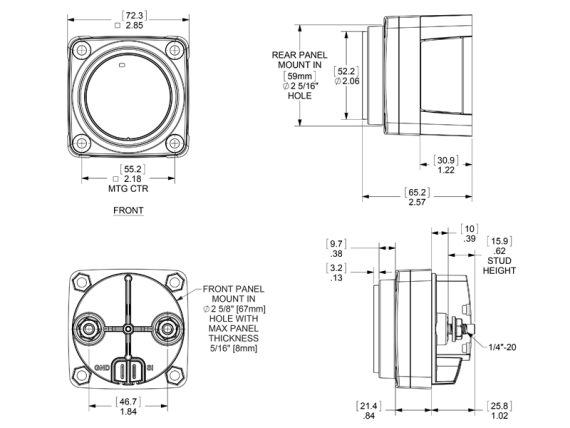

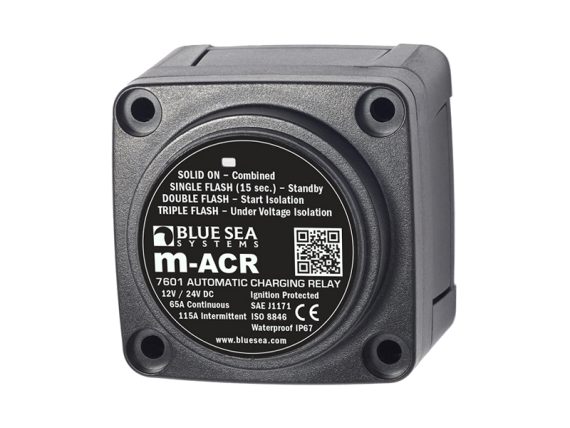

Relejs , kods 1790-7601. The Mini Automatic Charging Relay (M-ACR): designed to manage the charging current from alternators up to 65A found on most outboards and many inboard engines. Start Isolation (SI) isolates house loads temporarily from the engine circuit during engine cranking → protects sensitive electronics. The compact design, 3 mounting styles: surface, rear (stiprinājums atveres ø 59 mm) or panel (stiprinājums atveres ø 67 mm). Senses charging on two battery banks. Pull off and snap on insulating cover. LED indicates ACR status. M6 terminal stud: 11 mm length to accept multiple kabelis terminals. Waterproof – rated IP67 for temporary immersion. Bojāts relejs var izraisīt attiecīgās ķēdes neieslēgšanos vai neregulāru darbību.

1790-7601
