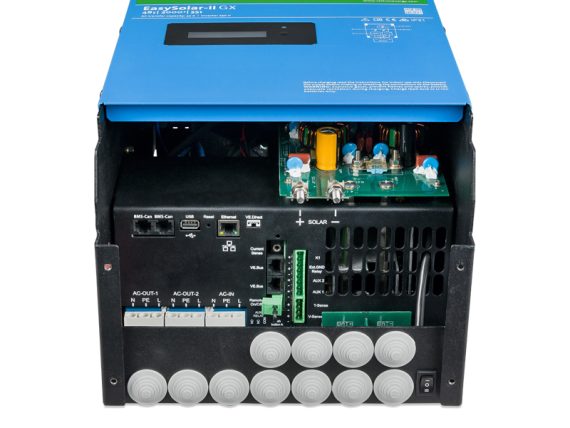

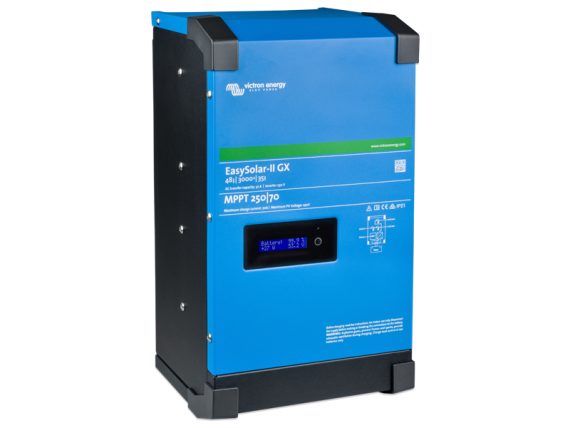

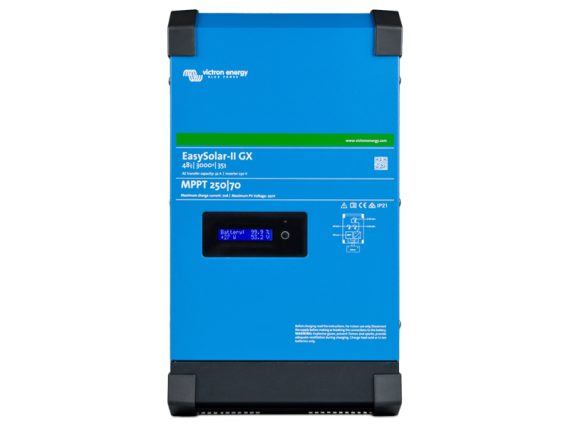

All-in-one solar power solution 3000VA 1702-87213

Produkta apraksts

all-in-one solar power solution integrated: inverter/charger MultiPlus-II – charge controller SmartSolar MPPT-Tr – GX-device with 2×16 character display, simplifies installation, saving time and money. DISPLAY and WI-FI: reads battery, inverter and solar charge parameters, same information can be accessed with a mobile phone or other Wi-Fi enabled device, Wi-Fi can also be used to set up system and change settings, SOLAR CHARGE CONTROLLER: DC-output is parallel wired with the DC connection of inverter/charger, on-off mechanism of inverter/charger controls also SmartSolar MPPT, GX DEVICE: BMS-CAN interface for connecting compatible CAN-bus managed battery, also USB, Ethernet ja VE-Direct -ports, INVERTER: input 38-66V, output 230VAC 50HZ, continous output 3000VA (@25°C), efficiency max 95%, CHARGER: input 187-265VAC, charge voltage: 52.8-57.6V, charge current max 35A, with temperature sensor and programmable relay, protections: output short circuit, overload, battery voltage too high or too low, temperature too high, 230VAC on inverter output, input voltage ripple too high, DATA SHEET (pdf) can be downloaded from “documents”, weight 26kg

1702-87213
