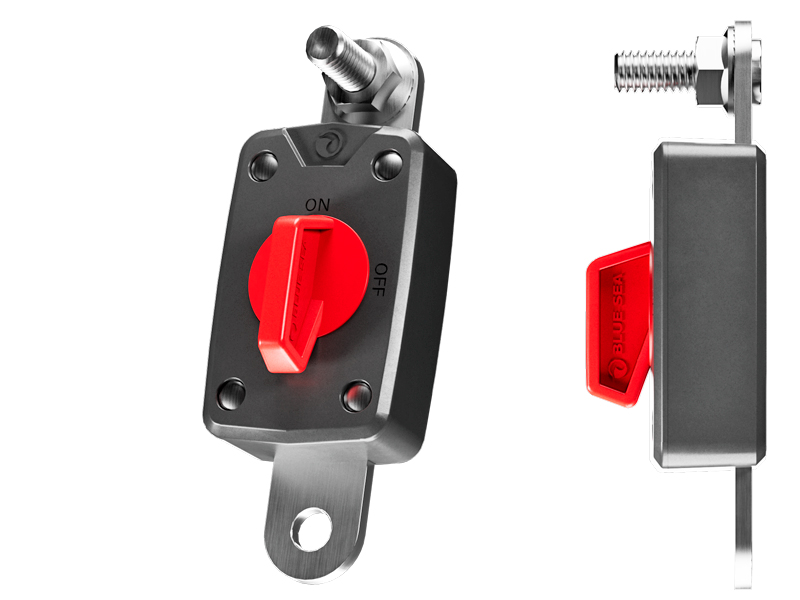

Battery switch 1790-5992

Produkta apraksts

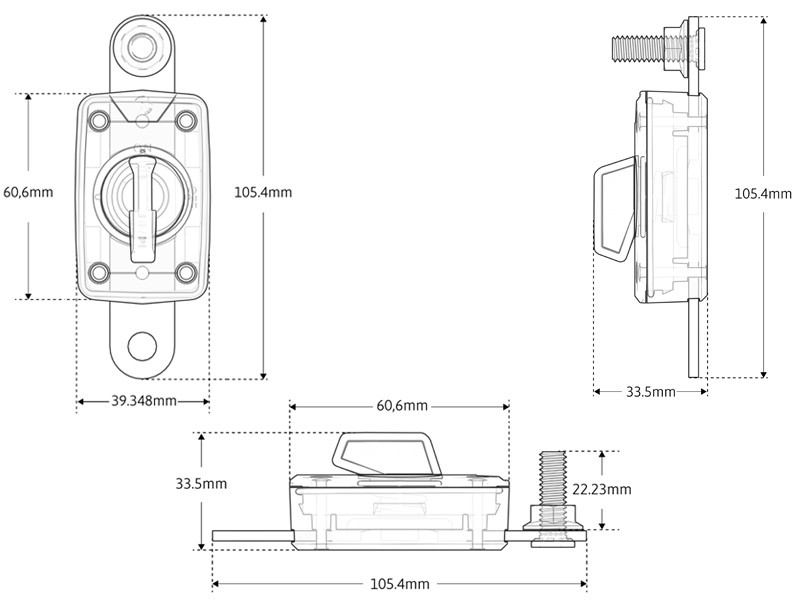

Compact, terminal-mounted battery switch (0–1): safer, simpler power isolation. Mounts directly to the positive or negative battery terminal stud: installation in minutes w/o additional wiring or mounting bracket. Easy way to isolate the battery and prevent parasitic drain during storage. The fully enclosed housing minimizes exposed conductive surfaces to help guard against accidental sparks, shorts and contact. Marine-grade, UV- and corrosion-resistant construction handles harsh environments and frequent switching. Ignition protected for use aboard gasoline-powered boats and vehicles. Ideal for marine, RV, off-grid and battery storage applications. —150 A cont. (225A 5 min – 450A cranking).max. 32 VDC . Battery connection: 3/8″ mounting hole, 5/16″-18 serrated flange nut. Wire Connection: 5/16″-18 stainless steel high-strength stud. Maximum Wire Gauge: 1/0 AWG (53 mm²). Recommended Torque: 11.3 Nm (100 in-lb). Mechanical Endurance: 10000 cycles.
