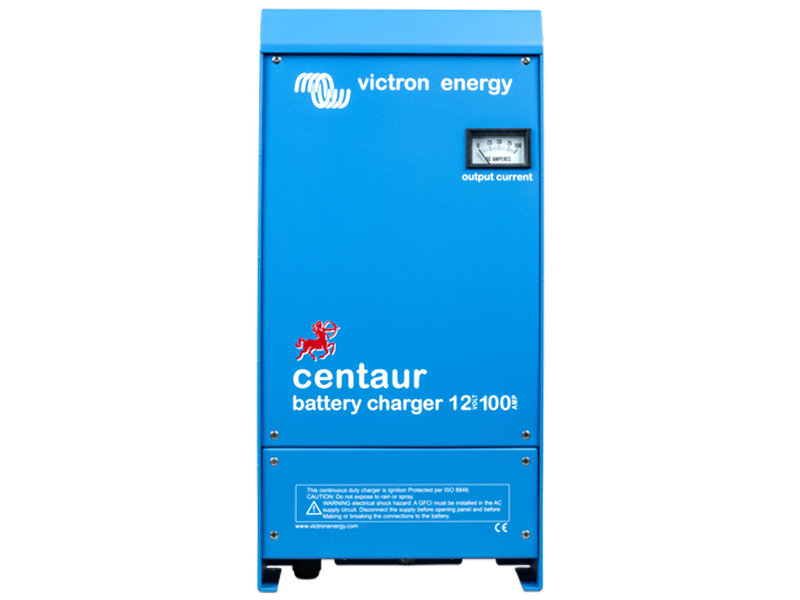

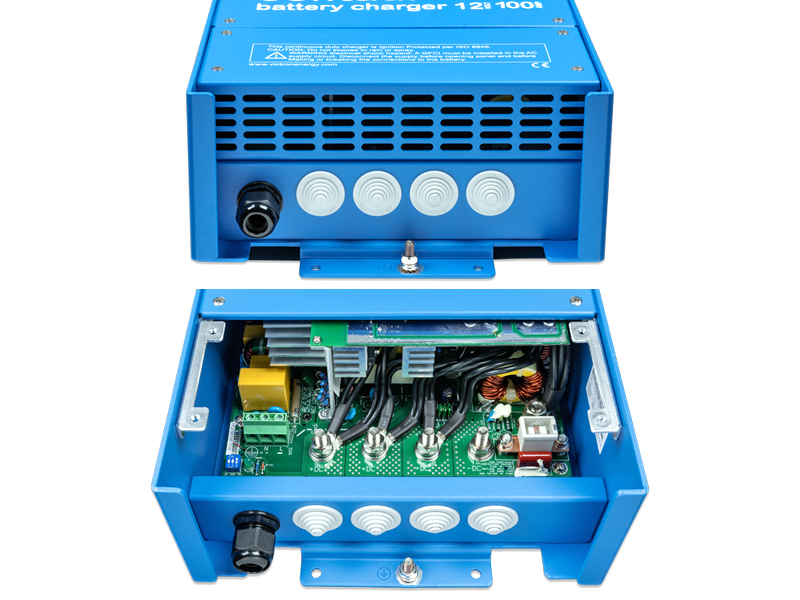

Battery charger 1702-87316

Produkta apraksts

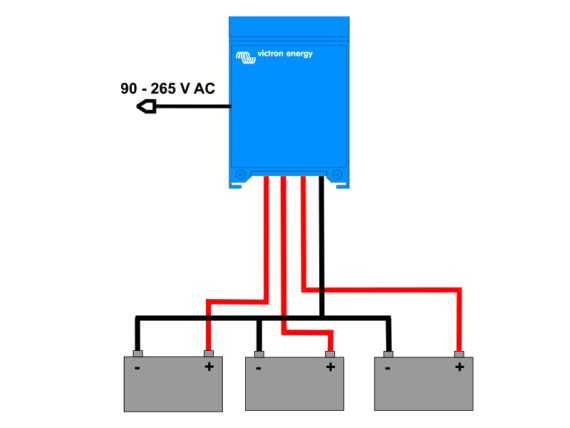

recommended battery capacity: 400-1000Ah, auto-ranging input 90-265V AC – 50/60 Hz or 90-400V DC, unlike many other products the Centaur range will maintain full output power within the entire specified range, fully automatic three stage charge characteristic that ensures batteries are fully charged every time, three isolated charge outputs for multi battery configurations, DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries, aluminium epoxy powder coated case with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air, circuit boards are protected with an acrylic coating for maximum corrosion resistance, temperature sensors ensure that power components will always operate within specified limits if needed by automatic reduction of output current, cooling fan, ignition protected, output short circuit protection—, charge current 100A, M8-bolt contacts for charging cables, screw connections (4mm²) for input voltage, operating temp -20°C … +60°C, RH max 95% (non-condensating)

1702-87316
