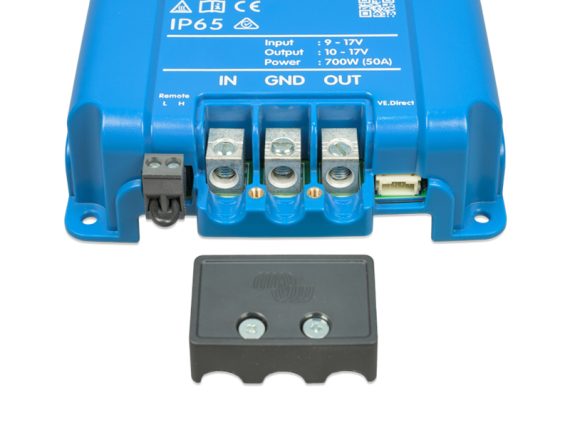

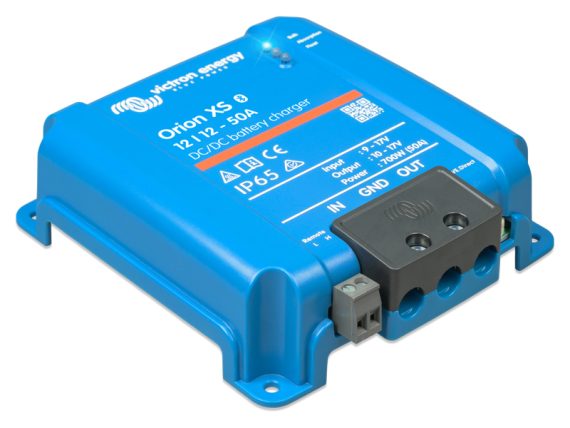

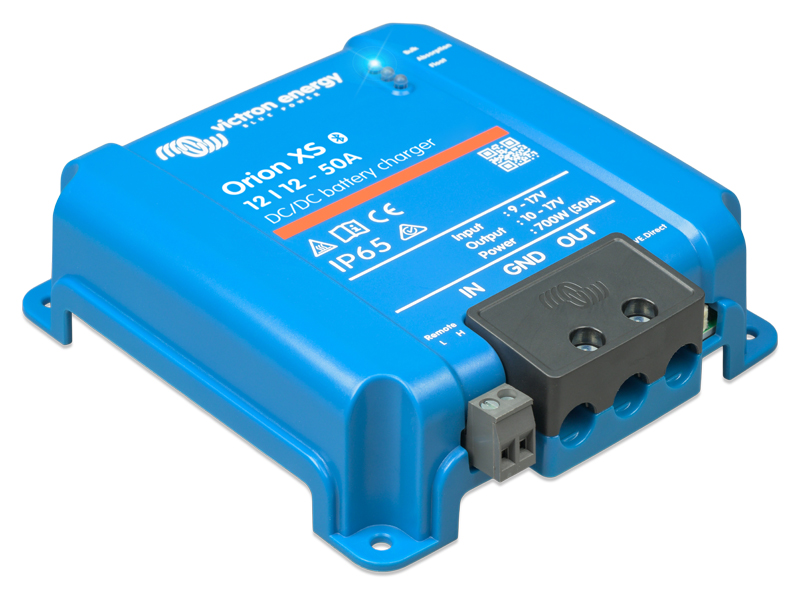

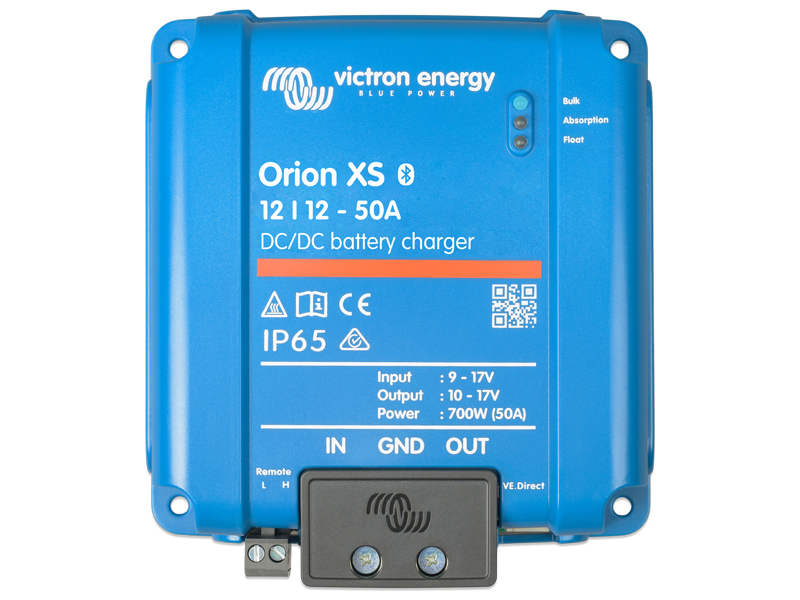

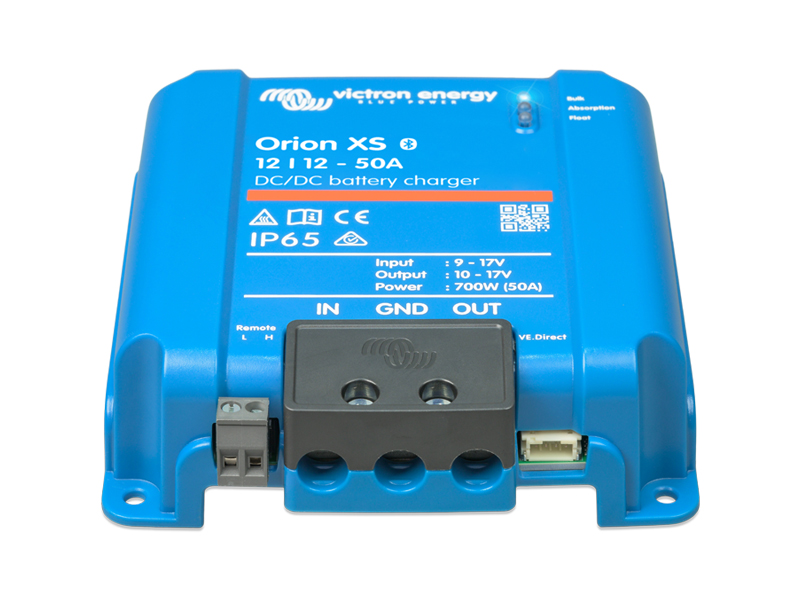

Battery Charger DC-DC 1702-87851

Produkta apraksts

DC-DC battery charger / power supply: wide input and output voltage range. Especially significant in vehicles with a Euro 5 or Euro 6 smart alternator: they often supply too low charging voltage even when the engine is running or when extended cable lengths lead to voltage drops – as is often the case in boats and RVs. Precise and controlled charging is imperative to fully charge the service battery while protecting the starter/input battery from discharge. Charging current is adjustable with a minimum stepsize of 0.1 A via VictronConnect. Smart alternator compatibility: integrated mechanism detects whether the engine is running (engine shutdown detection), which only activates the charger when the alternator supplies power → charger only draws power when the alternator is supplying power (=engine is running). Adaptive 4-stage charge algorithm for lead acid batteries: during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged. Fully programmable charging algorithms and eight pre-programmed battery settings. Low temperature shutdown and input undervoltage protection: charger turns off automatically at low temperatures to prevent damage of lithium batteries. It also shuts down when the input voltage drops below a configurable lockout value and restart when the input voltage rises above the restart value, this to protect the input source ie. starter battery from deep discharge. The Orion XS can be switched on and off remotely via the remote on/off connector or the VictronConnect App. The protections includes overload, short circuit and excessive temperatures. The charger is protected against over-temperature by reducing the output power when the maximum product temperature is reached. Unlimited number of units can be connected in parallel to increase output current.Built-in Bluetooth Smart: The wireless solution to change settings, monitor activities and update the Orion XS software using a mobile device. Various parameters can be adjusted with the VictronConnect App. The VictronConnect App can display key data, including warnings and alarms, without the need to connect to the product. VE.Smart Networking is used to receive Vsense, Tsense and Isense data for Orion XS over the wireless network. The charger improves charging efficiency and extends battery life by optimising the charging parameters based on a all available information from the battery. VE.Direct port and DVCC for a wired connection to a GX device, PC or other devices: advanced monitoring, control and diagnostics via internet or locally.

1702-87851
