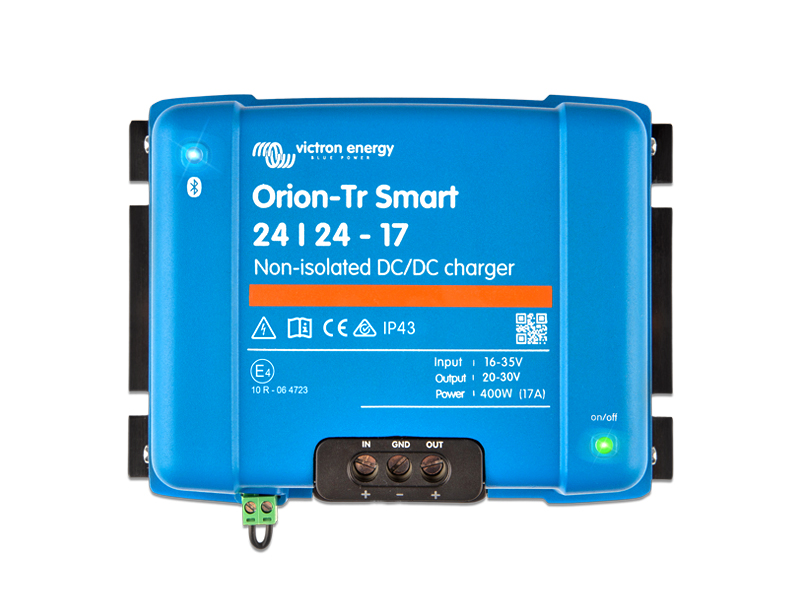

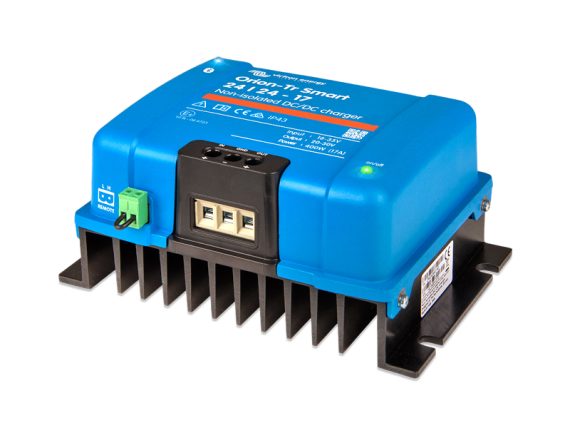

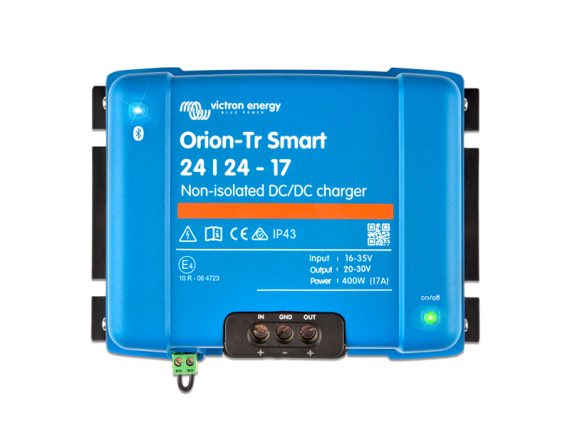

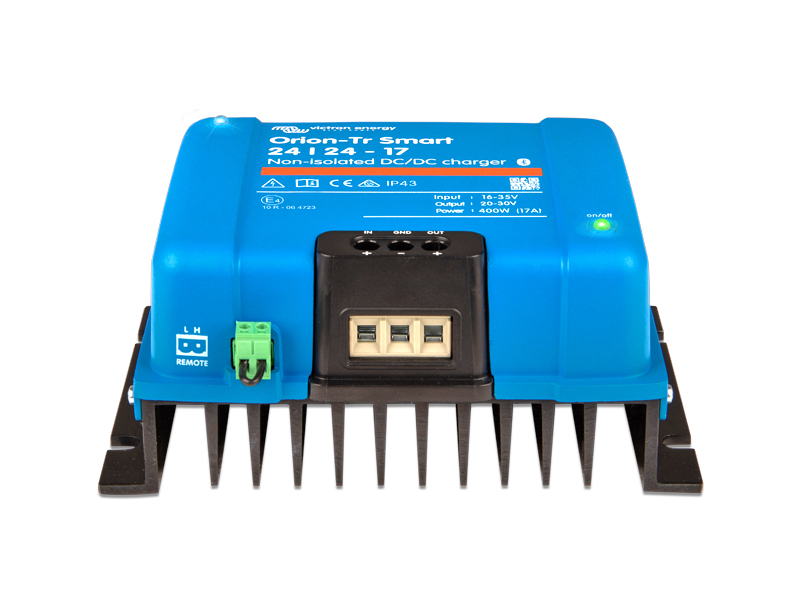

Battery charger DC-DC 1702-87383

Produkta apraksts

For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. Can be monitored and programmed via Bluetooth, can be remotely controlled via a remote on/off switch. Has an engine running detection mechanism, suitable for both lead acid and lithium batteries, unlimited multiple units can be connected in parallel to increase output power, suitable for temperatures up to +55°C, full rated output up to +40°C, 24V – 17A (25A @10s), input 20-35V, nominal output 24.2V, output voltage adjustable 20-30V, efficiency 89%, no load input current <80mA, standby current <1mA, output voltage tolerance ±0.2V, output noise 2mV rms, operating temperature -20°C … +55°C, RH max 95% (non-cond.), screw terminals, max cable 16mm², protection category: IP43 (electronic components) – IP22 (connection area)

1702-87383
